Irrigation Pumps: Caprari

Cadman carries the following Caprari products:

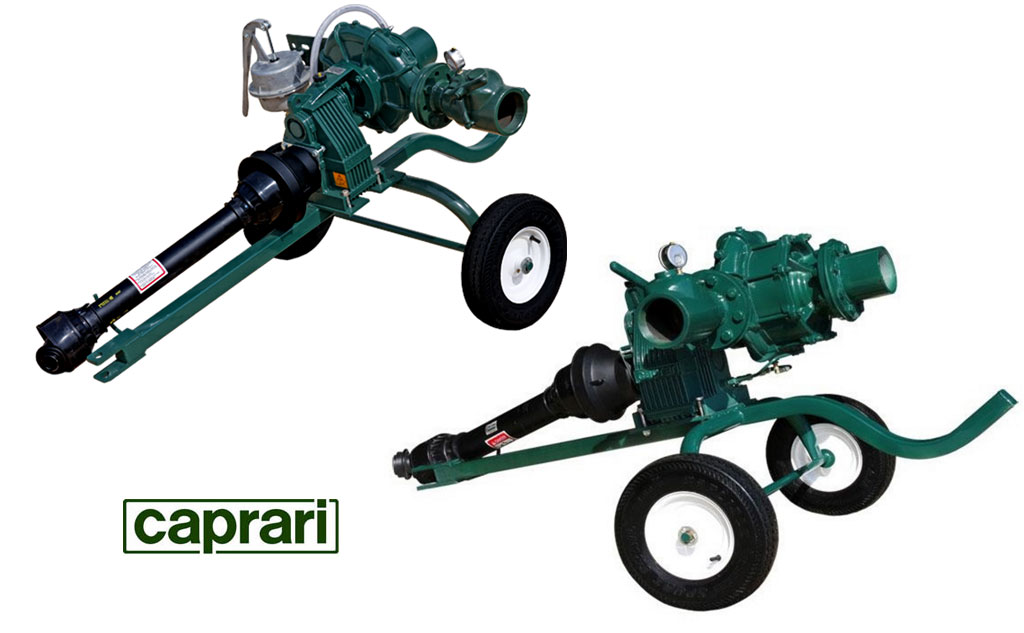

Single-Stage Tractor Driven (PTO), Multistage Tractor Driven (PTO), Multistage Engine Mounted, Single-Stage Frame Mounted, Multistage Frame Mounted, Multistage Frame Horizontal Mounted, SCC Split Case Series, P-Series, P-Series Drive Units, Single-Stage Centrifugal Pumps with Horizontal Shaft, Multistage Centrifugal Pumps with Horizontal Shaft, PM Multistage Centrifugal, KS + Series Electric Submersible and DS - MS Series Electric Submersible Pumps.
Single-Stage Tractor Driven (PTO), Multistage Tractor Driven (PTO), Multistage Engine Mounted, Single-Stage Frame Mounted, Multistage Frame Mounted, Multistage Frame Horizontal Mounted, SCC Split Case Series, P-Series, P-Series Drive Units Single-Stage Centrifugal Pumps with Horizontal Shaft, Multistage Centrifugal Pumps with Horizontal Shaft, PM Multistage Centrifugal, KS + Series Electric Submersible, DS - MS Series Electric Submersible Pumps


Caprari Pumps


Flow/Range: Up to 1500 GPM

MODEL RPM SUCTION DISCHARGE FLOW / RANGE CURVE
MEC D2/40 A 540 3" 2" 10 - 200 GPM
Performance Range for Single Stage Models
MEC D1/50 A 540 3" / 4" 2" / 4" 50 - 350 GPM
Performance Range for Single Stage Models
MEC D2/65 A
MEC D3/65 B 		540 4" 4" 90 - 450 GPM
Performance Range for Single Stage Models
MEC D2/80 A
MEC D04/80 C
MEC D04/80 E
MEC D04/80 C 		540 4" 4" A 20 - 790 GPM
E 20 - 760 GPM
Performance Range for Single Stage Models
MEC D 3/100 A
MEC D 3/101 A 		540
540 		6"
4" 		4"
5" 		0 - 540 GPM
Performance Range for Single Stage Models
MEC D01/125 A 1000 6" 5" 450 - 1500 GPM
Performance Range for Single Stage Models

Flow/Range: Up to 885 GPM

MODEL RPM SUCTION DISCHARGE FLOW / RANGE CURVES
MEC DMR 65-2/2 A 540 4" 4" 150 - 450
Performance Range for Multi Stage Models
MEC DMR 80-3/2 C 1000
4" 4" 50 - 880
Performance Range for Multi Stage Models
MEC DMR 80-3/2 E 540 4" 4" 50 - 880
Performance Range for Multi Stage Models
MEC DMR 83-3/2 A 1000 4" 4" 55 - 880
Performance Range for Multi Stage Models

Flow/Range: Up to 750 GPM

MODEL SUCTION DISCHARGE FLOW / RANGE CURVES

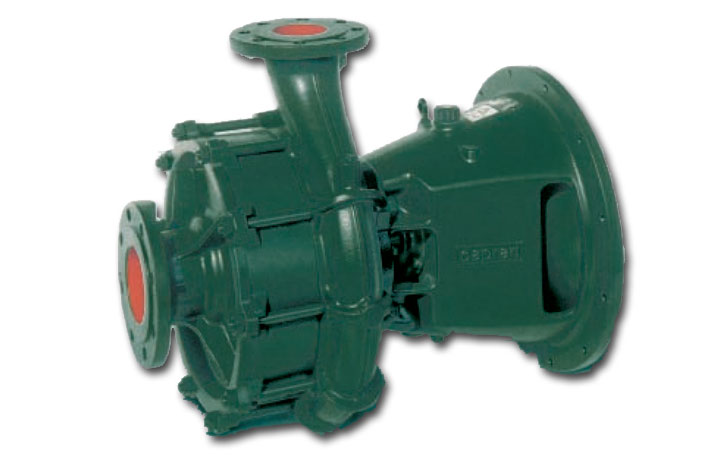

MEC MG 80/2 A
MEC MG 80/2 C 		4" 4" 60 - 820 GPM
60 - 790 GPM
Performance Range for Multi Stage Models
MEC MG 80-4/3 A 4" 4" 120 - 880 GPM
Performance Range for Multi Stage Models
MEC MG 100/2 A 6" 4" 90-140 GPM
Performance Range for Multi Stage Models
MEC MG 100/2 B 6" 4" 90-140 GPM
MEC MG 100/2 C 6" 4" 90-140 GPM
MEC MG 100/2 E 6" 4" 90-140 GPM
MEC MG 100-1/2 A 4" 4" 90-140 GPM
MEC MG 100-2/2 C 6" 4" 100 - 1200 GPM
Performance Range for Multi Stage Models

Flow/Range: Up to 885 GPM

MODEL SHAFT SIZE SUCTION DISCHARGE FLOW / RANGE CURVE

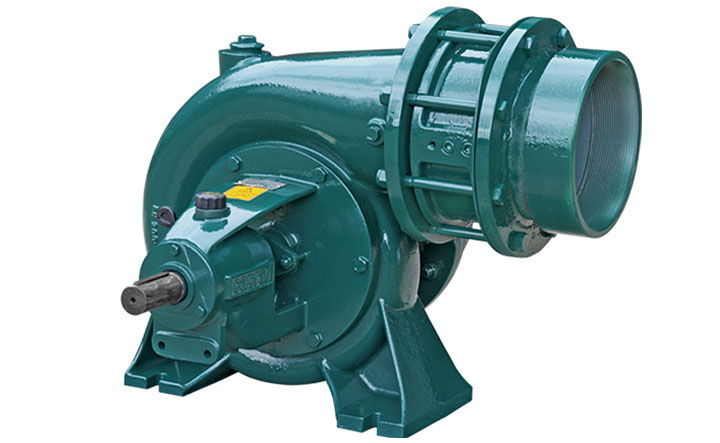

MEC A2/40 A 19 mm 2" NPT 2" NPT 16 - 130 GPM
Performance Range for Single Stage Frame Mount Models
MEC A3/50 A 24 mm 3" NPT 2" NPT 40 - 210 GPM
Performance Range for Single Stage Frame Mount Models
MEC A2/65 A 24 mm 4" NPT 4" NPT 95 - 380 GPM
Performance Range for Single Stage Frame Mount Models
MEC A3/65 A 24 mm 4" NPT 4" NPT 95 - 410 GPM
Performance Range for Single Stage Frame Mount Models
MEC A2/80 A 32 mm 4" NPT 4" NPT 160 - 600 GPM
Performance Range for Single Stage Frame Mount Models
MEC A3/80 A 32 mm 4" NPT 4" NPT 180 - 620 GPM
Performance Range for Single Stage Frame Mount Models
MEC A4/80 A 32 mm 4" NPT 4" NPT 180 - 630 GPM
Performance Range for Single Stage Frame Mount Models
MEC A3/100 A 32 mm 6" NPT 4" NPT 260 - 1000 GPM
Performance Range for Single Stage Frame Mount Models
MEC A4/100 A 32 mm 6" NPT 4" NPT 320 - 1100 GPM
Performance Range for Single Stage Frame Mount Models
MEC A3/125 A 42 mm 6" NPT 5" NPT 440 - 1500 GPM
Performance Range for Single Stage Frame Mount Models
MEC A4/125 A 42 mm 6" NPT 5" NPT 430 - 1400 GPM
Performance Range for Single Stage Frame Mount Models

Flow/Range: Up to 800 GPM

MODEL RPM SUCTION DISCHARGE FLOW / RANGE CURVE
MEC DMR 65-3/2 A 540 4" 4" Up to 800 GPM
Performance Range for Multi Stage Models
MEC DMR 80-3/2 1000 4" 4" Up to 800 GPM
Performance Range for Multi Stage Models
MEC DMR 80-3/2 E 540
4" 4" Up to 800 GPM
Performance Range for Multi Stage Models
MEC DMR 83-3/2 A 540
4" 4" Up to 800 GPM
Performance Range for Multi Stage Models

Flow/Range: Up to 210 GPM

MODEL FLOW / RANGE CURVE
MEC MR 65-3/2 A       Up to 210 GPM
Performance Range for Multi Stage Horizontal Frame Mounted Models

Flow/Range: Up to 1500 GPM

MODEL SUCTION DISCHARGE FLOW / RANGE CURVES
SCC Split Case Series
 4" 4" 90 - 1000 GPM
Performance Range for SCC Models

Flow/Range: Up to 780 GPM

MODEL FLOW / RANGE CURVES
P Series
 1 - 400 GPM
Performance Range for SCC Models

Flow/Range: Up to 780 GPM

MODEL FLOW / RANGE CURVES
P Series Drive Units
 1 - 400 GPM
Performance Range for SCC Models

Flow/Range: Up to 3500 GPM

MODEL SHAFT SIZE SUCTION DISCHARGE FLOW / RANGE CURVE
BHR 200 A 38 mm 8" NPT 8" NPT 790 - 2400 GPM
Performance Range for Single Stage Frame Mount Models
BHR 250 A 48 mm 10" NPT 10" MPT 1350 - 3500 GPM
Performance Range for Single Stage Frame Mount Models

Flow/Range: Up to 260 GPM

MODEL SHAFT SIZE SUCTION DISCHARGE FLOW / RANGE CURVE
HMU 40-1/3 28 mm 3" NPT 2" NPT 38 - 130 GPM
Performance Range for Multi Stage Models
HMU 40-2/3 28 mm 3" NPT 2" NPT 48 - 125 GPM
Performance Range for Multi Stage Models
HMU 50-1/3 38 mm 4" NPT 2" NPT 96 - 210 GPM
Performance Range for Multi Stage Models
HMU 50-2/3 38 mm 4" NPT 2" NPT 88 - 260 GPM
Performance Range for Multi Stage Models

Flow/Range: Up 25 - 650 GPM

MODEL SHAFT SIZE SUCTION DISCHARGE FLOW / RANGE CURVE
PM 150/3 A 50 mm 8" NPT 6" MPT 25 - 650 GPM
Performance Range for Multi Stage Models

Flow/Range: Up to 610 GPM

MODEL FLOW / RANGE CURVES

KT + DN 40

6 - 67
Performance Range for SCC Models

K + DN 65 ÷ 200

 2 - 180
Performance Range for SCC Models

K + DN 100 ÷ 250

10 - 300
Performance Range for SCC Models

K + DN 150 ÷ 350

 30 - 610
Performance Range for SCC Models

K - KOMPACT

 2 - 300
Performance Range for SCC Models

Flow/Range: Up to 50 GPM

MODEL FLOW / RANGE CURVES
DS - MS Series Electric Submersible Pumps
 1 - 50 GPM
Performance Range for DS - MS Models

M e MAT Electric submersible pumps for dirty water


 1 - 35 GPM
Performance Range for M e MAT Models
