Center Pivots
Electrogator® 3
by Cadman
Advanced Center Pivot Irrigation System
OVERVIEW
The Reinke Electrogator® 3 is Reinke’s toughest center pivot, built for stability, reliability, and the ability to deliver water across demanding acres.
Its open-frame pivot center, uniform coupler spacing, ReinLock™ trussing, and multiple end-of-system options are designed to improve coverage, tracking, and long-term structural performance.
PRODUCT DETAILS
Technical Specification
Max System Length
2,900′
Pipe Diameters
6″, 6 5/8″
Pipe Materials
High-Strength Steel, CN+
Span Lengths
80′, 100′, 120′, 140′, 160′, 175′, 180′, 200′, 220′
Span Outlet Spacing
30″, 60″
Span Percent Slope
Up to 23%
Boom Lengths
10′ to 110′ in 10′ increments
Drive Train
Three-Wheel Flex, Three-Wheel Ridged, Agri-TRACS™
OPTIONAL FEATURES
Configuration options
Ask about available configurations and options for your operation.
CUSTOM CONFIGURATION- Maintenance-free pivot center bearing
- ReinLock™ trussing system
- Hook & Receiver span connection
- ESAC™ Swing Arm Corner Series
- Wrap Span and Drop Span options
MEDIA

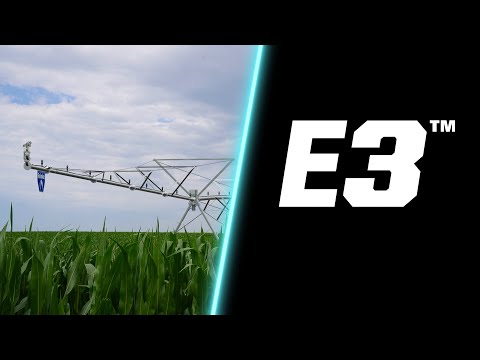

Watch the Electrogator® 3 in action
