Center Pivots
Minigator®
by Cadman
Compact Center Pivot Irrigation System
OVERVIEW

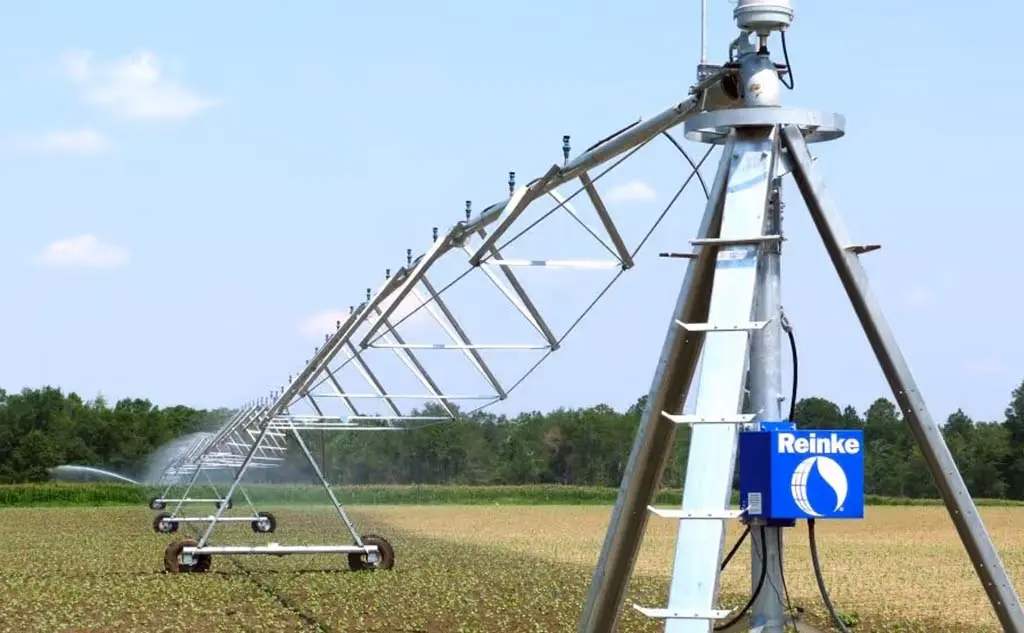

The Reinke Minigator® is a compact, cost-effective center pivot designed for smaller fields, small-acreage farms, and low-gallonage wells.
Its 3-leg pivot center, Kwik Tow option, compact pipe size, and manageable system length make it a flexible irrigation solution where maneuverability and lower-impact design matter most.
PRODUCT DETAILS
Technical Specification
Max System Length
1,300′
Pipe Diameter
4 1/2″
Pipe Material
High-Strength Steel
Span Lengths
118′, 137′, 156′, 175′, 194′
Span Outlet Spacing
57″, 114″
Span Percent Slope
Up to 14%
Boom Lengths
13′, 23′, 32′, 42′, 51′, 61′
Truss System
Heritage™ Trussing System
OPTIONAL FEATURES
Configuration options
Ask about available configurations and options for your operation.
CUSTOM CONFIGURATION- 3-leg pivot center
- Kwik Tow option
- 4 1/2-inch diameter pipe
- 57-inch and 114-inch outlet spacing
- Engine drive available in a single span configuration only
