3000 Series
3000WB
by Cadman
Hard Hose Traveller
OVERVIEW

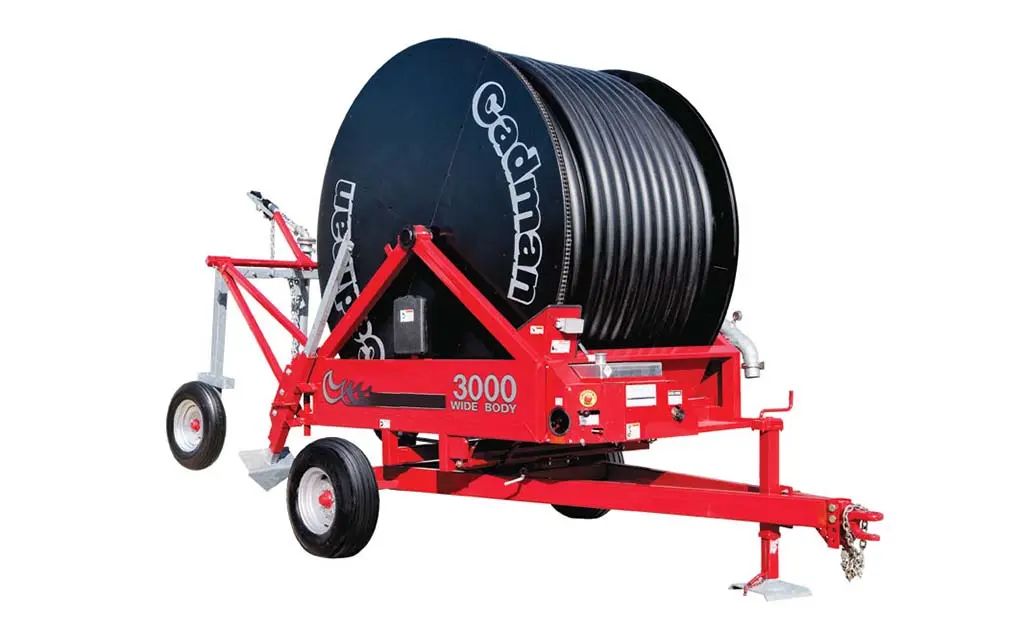

The Cadman 3000WB Traveller is a high-capacity hard hose irrigation system built for efficient, reliable water application in mid-size field operations.
Powered by a Honda OHV 4 HP engine with Cadman’s proven transmission, it delivers set-and-forget performance with strong drum construction and built-in safety controls.
PRODUCT DETAILS
Technical Specification
Hose Diameter
3.0″ (76 mm)
Hose Length
1075′ (328 m)
Flow Rate
160–272 GPM (605–1030 L/min)
Input Pressure Range
130–150 PSI (9–10 bar)
Sprinkler Pressure
80–90 PSI (5.5–6 bar)
Drive System
Honda OHV 4 HP engine + Cadman transmission
Control System
Auto stop + hose mis-wrap safety shutoff + accurate hose indexing
Frame Construction
Heavy-duty oversized drum & tubular steel frame (wide body)
Approximate Weight
5400 lbs
OPTIONAL FEATURES
Configuration options
Ask about available configurations and options for your operation.
CUSTOM CONFIGURATION- Chain-style stabilizer jacks
- Hydraulic stabilizers (tractor-controlled)
- Quick hitch & lift bar for towing
- Traveller-mounted sprinkler kit
- 4″ blowout adapter with ¼″ inlet for winterization/towing
- Gauge protector kit (for manure applications)
- Murphy shutdown gauge for high/low pressure protection
