3000 Series

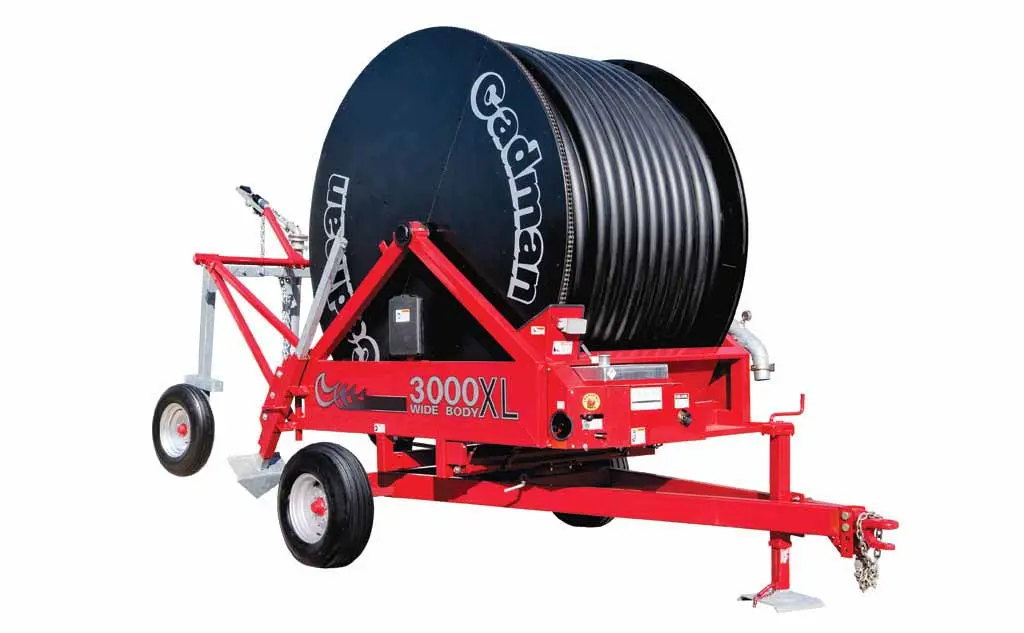

3000XL WB
by Cadman
Extended Reach Hard Hose Irrigation System
OVERVIEW
The Cadman 3000XL WB is engineered for long pulls, heavy-duty performance, and efficient water delivery across large-scale irrigation operations.
Powered by a reliable Honda OHV 4 HP engine with Cadman’s transmission, it delivers worry-free, set-and-forget operation with an oversized drum, rugged chain drive, and advanced safety systems.
PRODUCT DETAILS
Technical Specification
Hose Diameter
3.0″ (76 mm)
Hose Length
1390′ (424 m)
Flow Rate
175–236 GPM
Input Pressure Range
130–150 PSI (9–10 bar)
Sprinkler Pressure
80–90 PSI (5.5–6 bar)
Drive System
Honda OHV 4 HP engine + Cadman transmission
Control System
Auto-stop with integrated safety shutdown system
Frame Construction
Oversized heavy-duty drum with rugged chain drive
Approximate Weight
6400 lbs
OPTIONAL FEATURES
Configuration options
Ask about available configurations and options for your operation.
CUSTOM CONFIGURATION- Hydraulic stabilizer jacks
- Quick hitch & lift bar
- Traveller-mounted sprinkler kit
- Murphy shutdown gauge
- Winterization blowout kit
