3000 Series

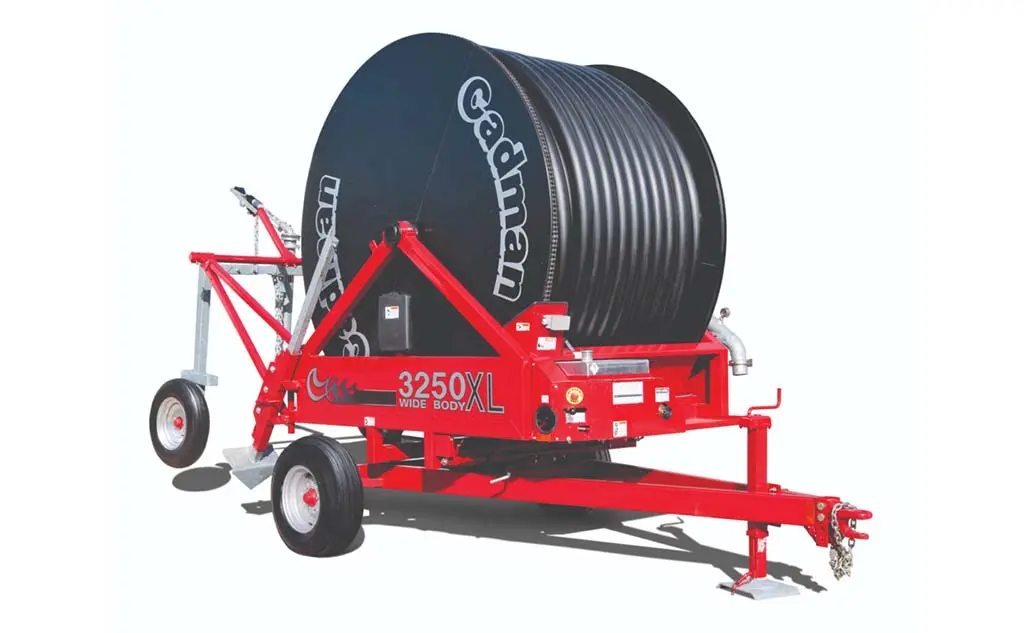

3250XL WB
by Cadman
Extended Reach Hard Hose Traveller
OVERVIEW
The Cadman 3250XL WB is engineered for extended reach and high-flow irrigation across large-scale field operations.
Powered by a Honda OHV 4 HP engine with Cadman transmission, it delivers dependable long-pull performance with heavy-duty drum construction and positive traction chain drive.
PRODUCT DETAILS
Technical Specification
Hose Diameter
3.25″ (82.5 mm)
Hose Length
1450′ (442 m)
Flow Rate
200–310 GPM
Input Pressure Range
130–150 PSI (9–10 bar)
Sprinkler Pressure
80–90 PSI (5.5–6 bar)
Drive System
Honda OHV 4 HP engine + Cadman transmission
Control System
Auto stop + hose mis-wrap safety shutoff + accurate hose indexing
Frame Construction
Heavy-duty oversized drum & tubular steel frame (wide body)
Approximate Weight
6327 lbs
OPTIONAL FEATURES
Configuration options
Ask about available configurations and options for your operation.
CUSTOM CONFIGURATION- Chain-style stabilizer jacks
- Hydraulic stabilizers (tractor-controlled)
- Quick hitch & lift bar for towing
- Traveller-mounted sprinkler kit
- Murphy shutdown gauge for pressure protection
MEDIA
Watch the 3250XL WB in action
