4000 Series

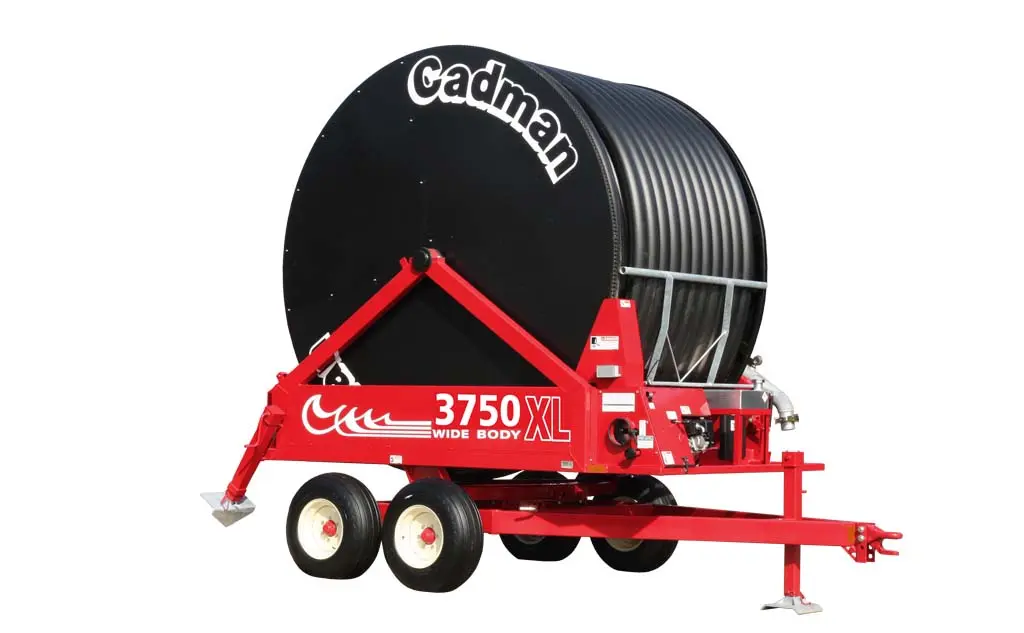

3750XL WB
by Cadman
High-Capacity Hard Hose Irrigation System
OVERVIEW
The Cadman 3750XL WB is engineered for extended irrigation coverage across demanding commercial fields.
Featuring a Honda OHV engine with Cadman transmission, it delivers strong, set-and-forget performance with oversized drum construction and built-in safety features.
PRODUCT DETAILS
Technical Specification
Hose Diameter
3.75″ (95 mm)
Hose Length
1320′ (402 m)
Flow Rate
300–450 GPM (1135–1700 L/min)
Input Pressure Range
130–150 PSI (9–10 bar)
Sprinkler Pressure
80–90 PSI (5.5–6 bar)
Drive System
Honda OHV engine + Cadman transmission
Control System
Auto-stop + hose mis-wrap safety shutoff + accurate hose indexing
Frame Construction
Heavy-duty oversized drum & wide-body steel frame
Approximate Weight
8,800 lbs
OPTIONAL FEATURES
Configuration options
Ask about available configurations and options for your operation.
CUSTOM CONFIGURATION- Hydraulic stabilizer jacks
- Quick hitch & lift bar
- Traveller-mounted sprinkler kit
- Murphy shutdown gauge
- Winterization blowout kit
MEDIA
Watch the 3750XL WB in action
NEED HELP?
Get a price today.
Talk to our team about the right configuration for your farm or operation.
Prefer to call? Click/Dial our toll-free line: 1-866-422-3626
