4000 Series

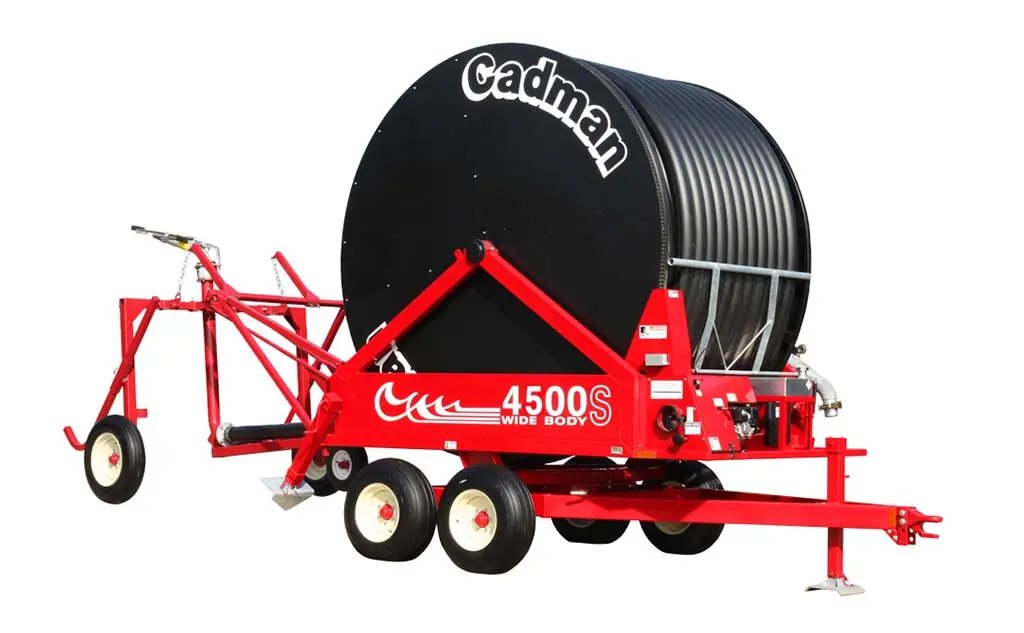

4500S WB
by Cadman
High-Capacity Hard Hose Traveller
OVERVIEW
The Cadman 4500S WB is engineered for high-volume commercial irrigation operations requiring maximum flow and dependable long-pull performance.
Powered by a Honda OHV 4 HP engine and Cadman transmission, it delivers consistent retraction, heavy-duty drum construction, and advanced safety controls for large-scale agricultural irrigation.
PRODUCT DETAILS
Technical Specification
Hose Diameter
4.5″ (114 mm)
Hose Length
1250′ (381 m)
Flow Rate
500–700 GPM
Input Pressure Range
130–150 PSI (9–10 bar)
Sprinkler Pressure
80–90 PSI (5.5–6 bar)
Drive System
Honda OHV 4 HP engine + Cadman transmission
Control System
Auto stop + hose mis-wrap safety shutoff + accurate hose indexing
Frame Construction
Heavy-duty oversized drum & tubular steel frame (wide body)
Approximate Weight
8800 lbs
OPTIONAL FEATURES
Configuration options
Ask about available configurations and options for your operation.
CUSTOM CONFIGURATION- Chain-style stabilizer jacks
- Hydraulic stabilizers (tractor-controlled)
- Quick hitch & lift bar for towing
- Traveller-mounted sprinkler kit
- Murphy shutdown gauge for pressure protection
MEDIA
Watch the 4500S WB in action
