3000 Series

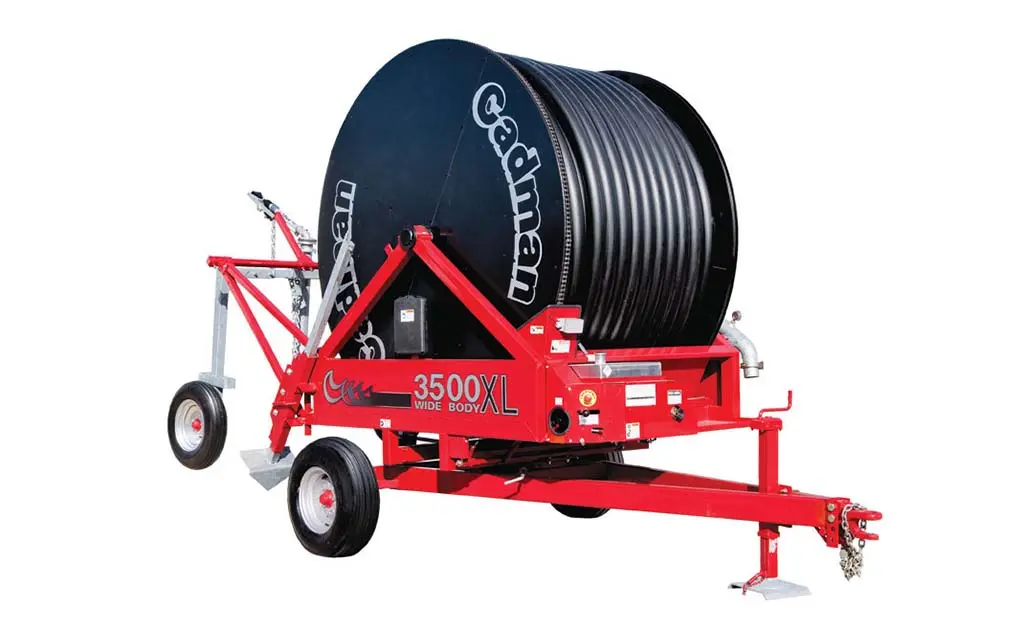

3500XL WB
by Cadman
Extended Reach High-Flow Hard Hose System
OVERVIEW
The Cadman 3500XL WB is engineered for extended reach and high-flow irrigation across demanding commercial field operations.
Powered by a Honda OHV 4 HP engine with Cadman transmission, it delivers dependable set-and-forget performance with an oversized drum, rugged chain drive, and advanced safety systems.
PRODUCT DETAILS
Technical Specification
Hose Diameter
3.5″ (89 mm)
Hose Length
1400′ (427 m)
Flow Rate
250–350 GPM
Input Pressure Range
130–150 PSI (9–10 bar)
Sprinkler Pressure
80–90 PSI (5.5–6 bar)
Drive System
Honda OHV 4 HP engine + Cadman transmission
Control System
Auto stop + hose mis-wrap safety shutoff + accurate hose indexing
Frame Construction
Heavy-duty oversized drum & tubular steel frame (wide body)
Approximate Weight
6300 lbs
OPTIONAL FEATURES
Configuration options
Ask about available configurations and options for your operation.
CUSTOM CONFIGURATION- Chain-style stabilizer jacks
- Hydraulic stabilizers (tractor-controlled)
- Quick hitch & lift bar for towing
- Traveller-mounted sprinkler kit
- Murphy shutdown gauge for pressure protection
