5000 Series

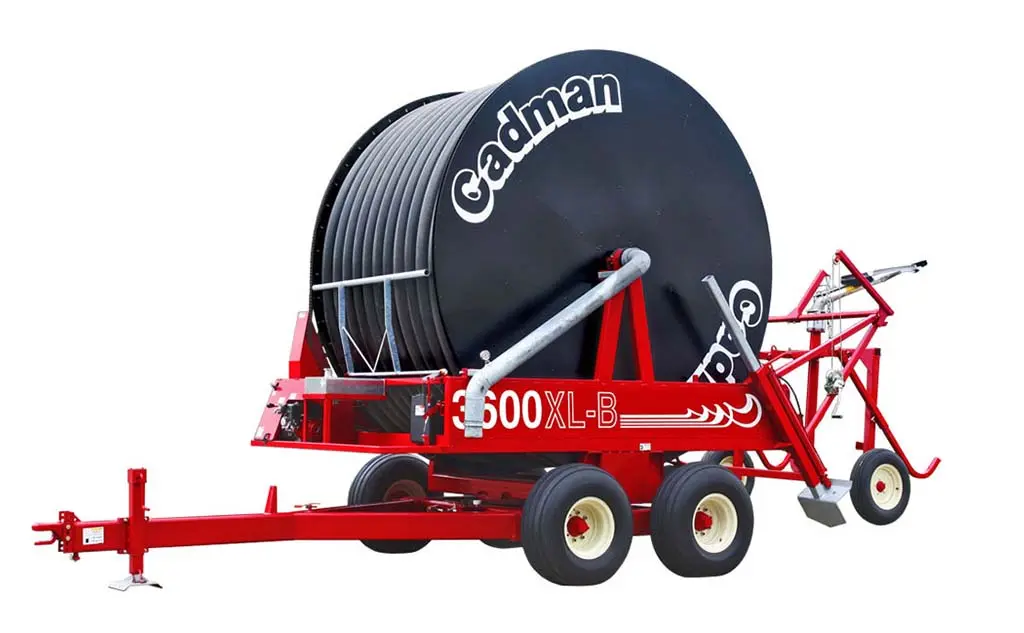

3600XL B
by Cadman
Hard Hose Traveller
OVERVIEW
The Cadman 3600XL B delivers strength and consistent performance for demanding irrigation needs with extended hose capacity and durable drum construction.
Powered by a Honda OHV 5.5 HP engine with Cadman’s proven transmission (10-year warranty), it’s built for set-and-forget operation with auto-stop safety and accurate hose indexing.
PRODUCT DETAILS
Technical Specification
Hose Diameter
3.6″ (91 mm)
Hose Length
2250′ (685 m)
Flow Rate
250–350 GPM (945–1325 L/min)
Input Pressure Range
130–150 PSI (9–10 bar)
Sprinkler Pressure
80–90 PSI (5.5–6 bar)
Drive System
Honda OHV 5.5 HP engine + Cadman transmission (10-year warranty)
Control System
Auto-stop + hose mis-wrap safety shutoff + accurate hose indexing + speedometer
Frame Construction
Oversized heavy-duty drum + positive traction chain drive + slewing ring turntable + crank-down stabilizers
Approximate Weight
16250 lbs
OPTIONAL FEATURES
Configuration options
Ask about available configurations and options for your operation.
CUSTOM CONFIGURATION- Chain-style stabilizer jacks
- Hydraulic stabilizers (tractor-controlled)
- Quick hitch & tractor lift bar
- Traveller-mounted sprinkler kit
- 4″ blowout adapter with ¼″ inlet
- Gauge protector kit
- Murphy shutdown gauge
