5000 Series
4000XL WB
by Cadman
High-Capacity Hard Hose Traveller
OVERVIEW

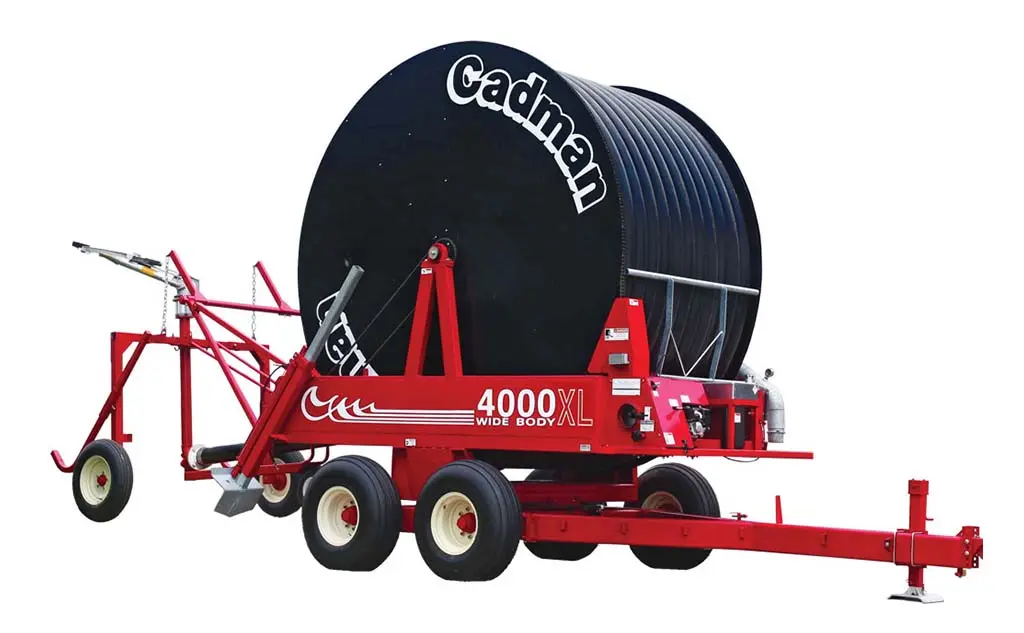

The Cadman 4000XL WB is engineered for high-capacity irrigation with multiple hose length configurations to match demanding field layouts.
Featuring a Honda-powered drive system and Cadman transmission, it delivers reliable long-pull performance, heavy-duty drum construction, and advanced safety systems for commercial irrigation operations.
PRODUCT DETAILS
Technical Specification
Hose Diameter
4.0″ (102 mm)
Hose Length Options
1400′ / 1550′ / 1850′ (427 m / 472 m / 564 m)
Flow Rate
400–600 GPM
Input Pressure Range
130–150 PSI (9–10 bar)
Sprinkler Pressure
80–90 PSI (5.5–6 bar)
Drive System
Honda OHV engine + Cadman transmission
Control System
Auto-stop + hose mis-wrap safety shutoff + accurate hose indexing + speedometer
Frame Construction
Oversized heavy-duty drum + positive traction chain drive + slewing ring turntable
Approximate Weight
14700 lbs
OPTIONAL FEATURES
Configuration options
Ask about available configurations and options for your operation.
CUSTOM CONFIGURATION- Hydraulic stabilizers
- Quick hitch & tractor lift bar
- Traveller-mounted sprinkler kit
- Murphy shutdown gauge
- Winterization blowout kit
