1 / 2
5000 Series
5000WB
by Cadman
Maximum Capacity Hard Hose Traveller
OVERVIEW

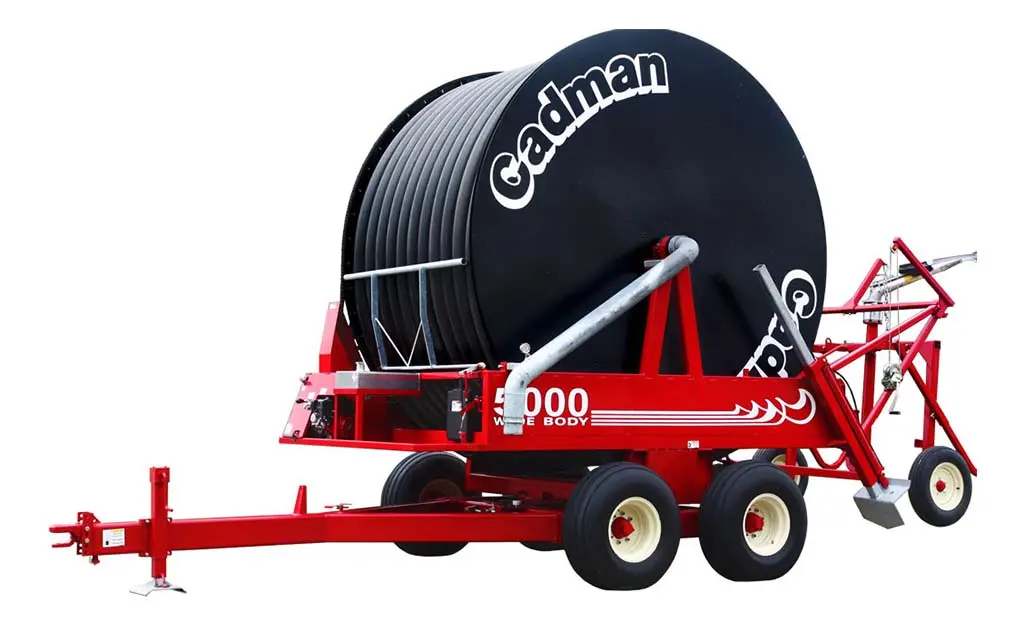

The Cadman 5000WB is built for maximum irrigation capacity, delivering high-volume water application across large-scale agricultural operations.
Powered by a Honda OHV 5.5 HP engine with Cadman’s 10-year warranty transmission, it features an oversized heavy-duty drum, positive traction chain drive, and integrated safety systems for reliable set-and-forget performance.
PRODUCT DETAILS
Technical Specification
Hose Diameter
5.0″ (127 mm)
Hose Length
1320′ (402 m)
Flow Rate
450–700 GPM (1703–2650 L/min)
Input Pressure Range
130–150 PSI (9–10 bar)
Sprinkler Pressure
80–90 PSI (5.5–6 bar)
Drive System
Honda OHV 5.5 HP engine + Cadman transmission (10-year warranty)
Control System
Auto stop + hose build-up safety shutoff + accurate hose indexing + easy-to-read speedometer
Frame Construction
Heavy-duty oversized drum + positive traction chain drive + slewing ring turntable + long-life nylon drum bearings + heavy-duty crank-down stabilizers
Approximate Weight
14700 lbs
OPTIONAL FEATURES
Configuration options
Ask about available configurations and options for your operation.
CUSTOM CONFIGURATION- Chain-style stabilizer jacks
- Hydraulic stabilizers (tractor-controlled)
- Quick hitch & tractor lift bar
- Traveller-mounted sprinkler kit
- 4″ blowout adapter with ¼″ inlet
- Gauge protector kit
- Murphy shutdown gauge
