5000 Series

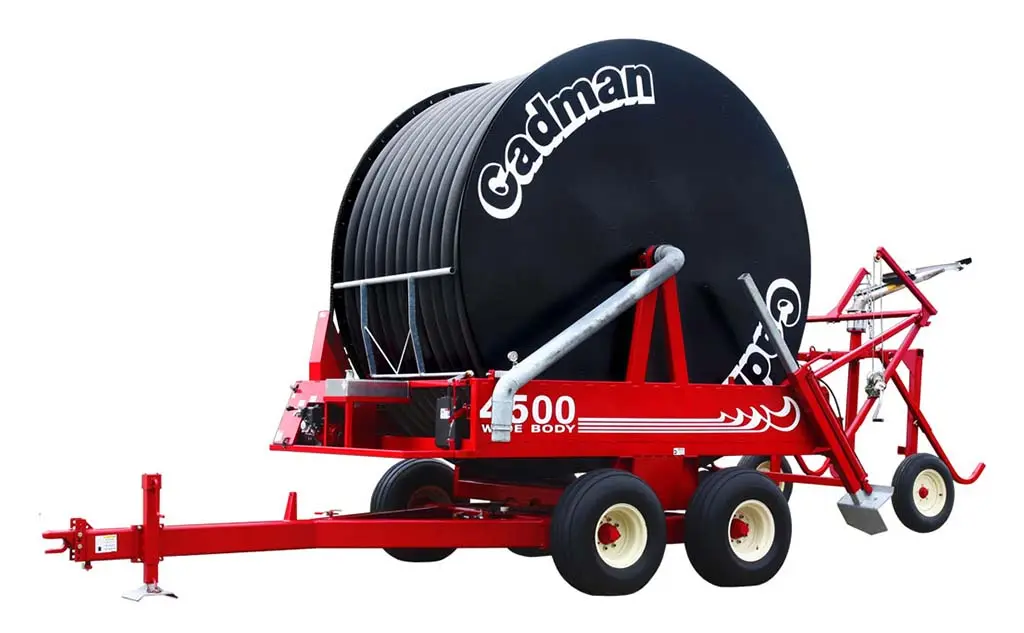

4500WB
by Cadman
Hard Hose Traveller
OVERVIEW
The Cadman 4500WB is built for high-volume irrigation and long pulls, delivering consistent coverage with a 4.5″ hard hose and 1320′ reach.
Powered by a Honda OHV 5.5 HP engine with Cadman’s 10-year warranty transmission, it combines a heavy-duty oversized drum, positive traction chain drive, and safety controls for dependable set-and-forget operation.
PRODUCT DETAILS
Technical Specification
Hose Diameter
4.5″ (114 mm)
Hose Length
1320′ (402 m)
Flow Rate
400–550 GPM (1515–2082 L/min)
Input Pressure Range
130–150 PSI (9–10 bar)
Sprinkler Pressure
80–90 PSI (5.5–6 bar)
Drive System
Honda OHV 5.5 HP engine + Cadman transmission (10-year warranty)
Control System
Auto stop + hose build-up safety shutoff + accurate hose indexing + easy-to-read speedometer
Frame Construction
Heavy-duty oversized drum + positive traction chain drive + slewing ring turntable + long-life nylon drum bearings + heavy-duty crank-down stabilizers
Approximate Weight
14700 lbs
OPTIONAL FEATURES
Configuration options
Ask about available configurations and options for your operation.
CUSTOM CONFIGURATION- Chain-style stabilizer jacks
- Hydraulic stabilizers (tractor-controlled)
- Quick hitch & tractor lift bar
- Traveller-mounted sprinkler kit
- 4″ blowout adapter with ¼″ inlet
- Gauge protector kit
- Murphy shutdown gauge
MEDIA
Watch the 4500WB in action
NEED HELP?
Get a price today.
Talk to our team about the right configuration for your farm or operation.
Prefer to call? Click/Dial our toll-free line: 1-866-422-3626
