A pump to suit all your needs

Cadman Irrigation Pump Brands

Caprari Pumps

Caprari pumps are known world-wide for their quality construction, reliability and high efficiency. Since 1984, Cadman has teamed up with Caprari to provide you with these high quality products. Cadman has thirteen different single stage models to offer, from 50 GPM to 2,300 GPM. These pumps are available in bare and fitted forms. Bare pumps are supplied with counter-flanges, gaskets and bolts. Fitted pumps come complete with a heavy duty two wheel cart, PTO shaft, liquid pressure gauge, priming check valve and NPT thread for suction port. All pumps come with the discharge port facing horizontal left (when standing behind suction side.) Upon request, pump valves can be rotated to vertical or horizontal right.

Flow/Range: Up to 1500 GPM

MODELRPMSUCTIONDISCHARGEFLOW / RANGE
MEC D2/40 A5403″2″10 – 200 GPM
MEC D1/50 A5403″ / 4″2″ / 4″50 – 350 GPM
MEC D2/65 A
MEC D3/65 B		5404″4″90 – 450 GPM
MEC D2/80 A
MEC D04/80 C
MEC D04/80 E
MEC D04/80 C		5404″4″A 20 – 790 GPM
E 20 – 760 GPM
Performance Range for Single Stage Models
MEC D 3/100 A
MEC D 3/101 A		540
540		6″
4″		4″
5″		0 – 540 GPM
MEC D01/125 A10006″5″450 – 1500 GPM
Performance Range for Single Stage Models

Flow/Range: Up to 885 GPM

MODEL RPM SUCTION DISCHARGE FLOW / RANGE
MEC DMR 65-2/2 A 540 4″ 4″ 150 – 450
DMR 80-3/2 C 1000 4″ 4″ 50 – 880
MEC DMR 80-3/2 E 540 4″ 4″ 50 – 880
DMR 83-3/2 A 1000 4″ 4″ 55 – 880
Performance Range for Multi Stage Models

Flow/Range: Up to 750 GPM

MODEL SUCTION DISCHARGE FLOW / RANGE
MEC MG 80/2 A
MEC MG 80/2 C		 4″ 4″ 60 – 820 GPM
60 – 790 GPM

MEC MG 80-4/3 A 4″ 4″ 120 – 880 GPM

MEC MG 100/2 A 6″ 4″ 90-140 GPM

MEC MG 100/2 B 6″ 4″ 90-140 GPM
MEC MG 100/2 C 6″ 4″ 90-140 GPM
MEC MG 100/2 E 6″ 4″ 90-140 GPM
MEC MG 100-1/2 A 4″ 4″ 90-140 GPM
MEC MG 100-2/2 C 6″ 4″ 100 – 1200 GPM

Flow/Range: Up to 885 GPM

MODELSHAFT SIZESUCTIONDISCHARGEFLOW / RANGE
MEC A2/40 A19 mm2″ NPT2″ NPT16 – 130 GPM
Performance Range for Single Stage Frame Mount Models
MEC A3/50 A24 mm3″ NPT2″ NPT40 – 210 GPM
Performance Range for Single Stage Frame Mount Models
MEC A2/65 A24 mm4″ NPT4″ NPT95 – 380 GPM
Performance Range for Single Stage Frame Mount Models
MEC A3/65 A24 mm4″ NPT4″ NPT95 – 410 GPM
Performance Range for Single Stage Frame Mount Models
MEC A2/80 A32 mm4″ NPT4″ NPT160 – 600 GPM
Performance Range for Single Stage Frame Mount Models
MEC A3/80 A32 mm4″ NPT4″ NPT180 – 620 GPM
Performance Range for Single Stage Frame Mount Models
MEC A4/80 A32 mm4″ NPT4″ NPT180 – 630 GPM
Performance Range for Single Stage Frame Mount Models
MEC A3/100 A32 mm6″ NPT4″ NPT260 – 1000 GPM
Performance Range for Single Stage Frame Mount Models
MEC A4/100 A32 mm6″ NPT4″ NPT320 – 1100 GPM
Performance Range for Single Stage Frame Mount Models
MEC A3/125 A42 mm6″ NPT5″ NPT440 – 1500 GPM
Performance Range for Single Stage Frame Mount Models
MEC A4/125 A42 mm6″ NPT5″ NPT430 – 1400 GPM
Performance Range for Single Stage Frame Mount Models

Flow/Range: Up to 800 GPM

MODELRPMSUCTIONDISCHARGEFLOW / RANGECURVE
MEC DMR 65-3/2 A5404″4″Up to 800 GPM
Performance Range for Multi Stage Models
MEC DMR 80-3/210004″4″Up to 800 GPM
Performance Range for Multi Stage Models
MEC DMR 80-3/2 E5404″4″Up to 800 GPM
Performance Range for Multi Stage Models
MEC DMR 83-3/2 A5404″4″Up to 800 GPM
Performance Range for Multi Stage Models

Flow/Range: Up to 3500 GPM

MODELSHAFT SIZESUCTIONDISCHARGEFLOW / RANGECURVE
BHR 200 A38 mm8″ NPT8″ NPT790 – 2400 GPM
Performance Range for Single Stage Frame Mount Models
BHR 250 A48 mm10″ NPT10″ MPT1350 – 3500 GPM
Performance Range for Single Stage Frame Mount Models

Flow/Range: Up to 260 GPM

MODELSHAFT SIZESUCTIONDISCHARGEFLOW / RANGECURVE

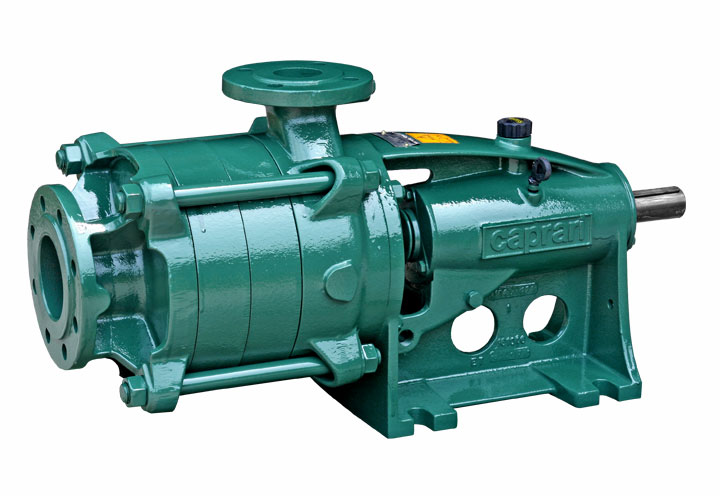

HMU 40-1/328 mm3″ NPT2″ NPT38 – 130 GPM
Performance Range for Multi Stage Models
HMU 40-2/328 mm3″ NPT2″ NPT48 – 125 GPM
Performance Range for Multi Stage Models
HMU 50-1/338 mm4″ NPT2″ NPT96 – 210 GPM
Performance Range for Multi Stage Models
HMU 50-2/338 mm4″ NPT2″ NPT88 – 260 GPM
Performance Range for Multi Stage Models

Cornell Pumps

Cornell began manufacturing pumps for agriculture when the company launched in 1946. Since that time, Cornell engineers have continued to make improvements in pump design and function. Features unique to Cornell pumps, such as Cycloseal, Run-Dry®, and Redi-Prime®, allow Cornell pumps to handle the most demanding applications. These features, coupled with efficiencies up to 89%, are why Cornell is considered the benchmark in agricultural pumps.

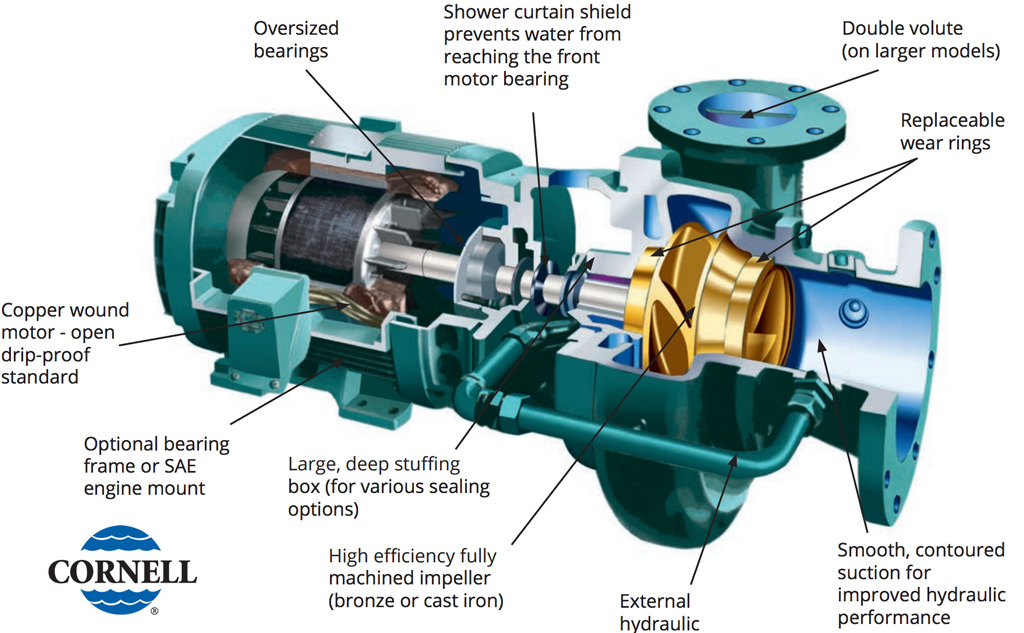

DOUBLE VOLUTE
Cornell introduced the double volute as an industry first more than 30 years ago. The double volute system effectively balances forces within the pump to reduce radial load, shaft deflection and fatigue. This eliminates shaft breakage and extends the service life of packing and mechanical seals, wear rings and bearings while maintaining high hydraulic efficiency.

EXTERNAL HYDRAULIC BALANCE LINE
Cornell’s external hydraulic balance line equalizes pressure between the impeller hub area and the pump suction to reduce axial loading acting on the impeller, shaft and bearings. The balance line also assists in moving sand and silt from the stuffing box to the low pressure area at the pump suction, reducing wear of the wetted parts.

ENERGY EFFICIENCY
Cornell Pumps are designed to deliver best in class efficiency. Depending on operating hours, fuelant, and horsepower required, you can save $3,000 per year (or more) in energy costs. Cornell manufactures more than 35 IRRIGATION pump models that meet or exceed optimum efficiency standards for centrifugal pumps.

MATERIALS OF CONSTRUCTION
All Cornell irrigation pumps are constructed with top quality materials. Cornell irrigation pumps are cast iron, bronze fitted or all iron construction. Optional materials are available for abrasive or caustic applications. Standard features include balanced impellers, heavy-duty shafts, replaceable shaft sleeves, and replaceable wear rings

W Series

  • Low Cost, High Efficiency, 3600 rpm pumps
  • 1″ through 5″ discharge size
  • Flows to 2500 GPM and Heads to 220 feet
MODELDIMENSIONSDISCHARGEFLOW / RANGECURVEPHOTOS
Engine MountedPump Dimensions4 – 5″Flows to 2550 GPMCornell W-Series Pump
Cornell W-Series Engine Mount Pump
Horizontal Close Coupled

Pump Dimensions

1 – 5″Flows to 2550 GPMCornell W-Series Pump
Cornell W-Series Engine Mount Pump
Horizontal Frame Mount

Pump Dimensions

1 – 5″Flows to 1900 GPMCornell W-Series Pump
Cornell W-Series Horizontal Frame Mount Pump
Vertical Close Coupled

Pump Dimensions

1 – 5″Flows to1900 GPMCornell W-Series Pump
Cornell W-Series Vertical Close Coupled

H Series

  • High Head, High Efficiency pump
  • 3″ through 8″ discharge size
  • Flows to 5500 GPM and Heads to 440 feet
MODELDIMENSIONSDISCHARGEFLOW / RANGECURVEPHOTOS
Engine MountedPump Dimensions2.5 – 10″Flows to 5500 GPMCornell H-Series PumpCornell H-Series Engine Mount Pump
Horizontal Close Coupled

Pump Dimensions

1.25 – 10″Flows to 6600 GPMCornell H-Series Pump
Cornell Y-Series Engine Mount Pump
Horizontal Frame Mount

Pump Dimensions

2.5 – 8″Flows to 5500 GPMCornell H-Series Pump
Cornell H-Series Horizontal Frame Mount Pump
Vertical Close Coupled

Pump Dimensions

2.5 – 8″Flows to 4900 GPMCornell H-Series Pump
Cornell H-Series Vertical Close Coupled

Y Series

  • Wide Range of Flow and Head
  • 1.25″ through 10″ discharge size
  • Flows to 6600 GPM and Heads to 400 feet
MODELDIMENSIONSDISCHARGEFLOW / RANGECURVEPHOTOS
Engine MountedPump Dimensions3 – 10″Flows to 6750 GPMCornell Y-Series Engine Mounted Pump
Cornell Y-Series Engine Mount Pump
Horizontal Close Coupled

Pump Dimensions

1.25 – 10″Flows to 5400 GPMCornell Y-Series Engine Mounted Pump
Cornell Y-Series Engine Mount Pump
Horizontal Frame Mount

Pump Dimensions

1.25 – 10″Flows to 5400 GPMCornell Y-Series Engine Mounted Pump
Cornell H-Series Horizontal Frame Mount Pump
Vertical Close Coupled

Pump Dimensions

1.25 – 10″Flows to 5400 GPMCornell Y-Series Engine Mounted Pump
Cornell H-Series Vertical Close Coupled

RB Series

  • The Most Efficient Pumps in the Industry
  • 2.5″ through 10″ discharge size
  • Flows to 7000 GPM and Heads to 325 feet
MODELDIMENSIONSDISCHARGEFLOW / RANGECURVEPHOTOS
Engine MountedPump Dimensions2.5 – 10″Flows to 7100 GPMCornell R-Series Pump
Cornell R-Series Engine Mount Pump
Horizontal Close Coupled

Pump Dimensions

1.25 – 10″Flows to 5700 GPMCornell R-Series Pump
Cornell R-Series Engine Mount Pump
Horizontal Frame Mount

Pump Dimensions

2.5 – 10″Flows to 7100 GPMCornell R-Series Pump
Cornell R-Series Horizontal Frame Mount Pump
Vertical Close Coupled

Pump Dimensions

2.5 – 10″Flows to 5700 GPMCornell R-Series Pump
Cornell R-Series Vertical Close Coupled

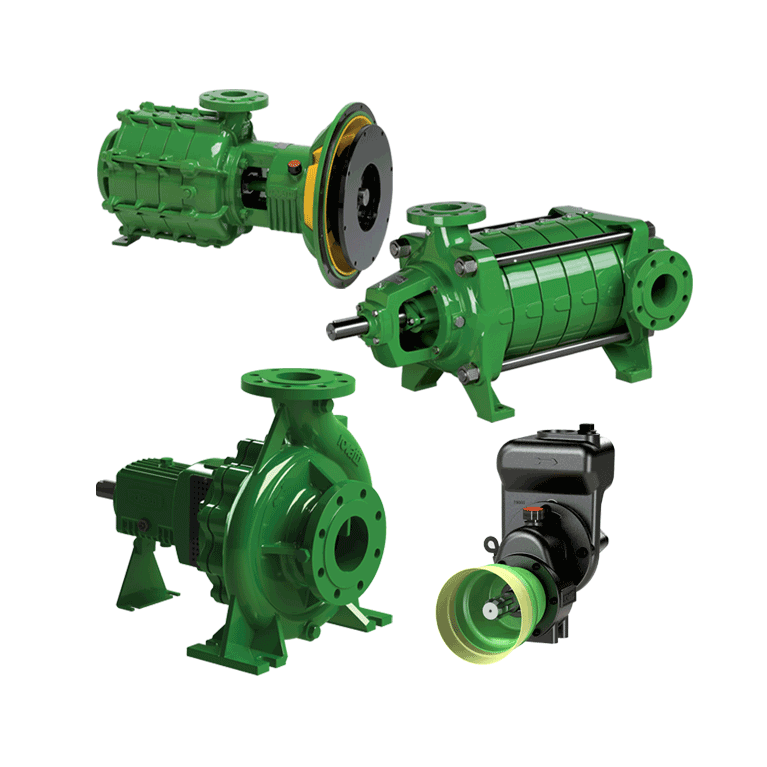

Rovatti Pumps

AGRICULTURE & IRRIGATION AT THE SERVICE OF AGRICULTURE
For years we have been providing all our products to satisfy with efficiency and reliability your needs in the agricultural sector

Pump TypeFlow / RangeSpecificationsPhoto

Multi-Stage Centrifugal Pump

 GPM

See the pump curve and technical data

Multistage SAE flanged centrifugal pumps for direct coupling to thermic engines with SAE flanges. Axial inlet and outlet with upwards delivery flange laterally rotating 90° on both sides.

Pump TypeFlow / RangeSpecificationsPhoto

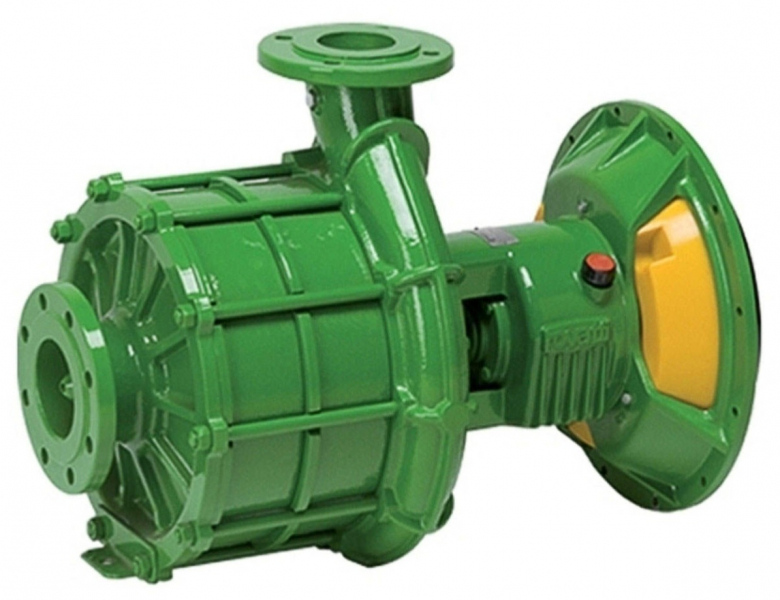

Rovatti F33K100H/3E Flangepump GPM

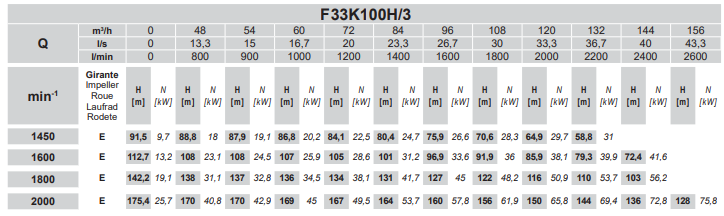

See the pump curve and technical data here

Berkely Pumps

Berkeley® knows that you demand the highest performance from your irrigation and turf pumps. Our professionally engineered, high-quality, centrifugal pumps, subturbine pumps and line shaft turbine pumps deliver years of trouble free, efficient operation. After three quarters of a century, the Berkeley® tradition of engineering excellence and superior product is still in full force. This is evident in the quality of our irrigation pumps, turf pumps, and every pump Berkeley® builds!

Pump TypeFlow / RangeCurvePhoto
SAE Mount Pumps6500 GPM
Berkeley
Berkeley SAE Mount Pump
Pump TypeFlow / RangeCurvePhoto
Electric PumpsPump275 GPM
Performance Range for Electric Series Models

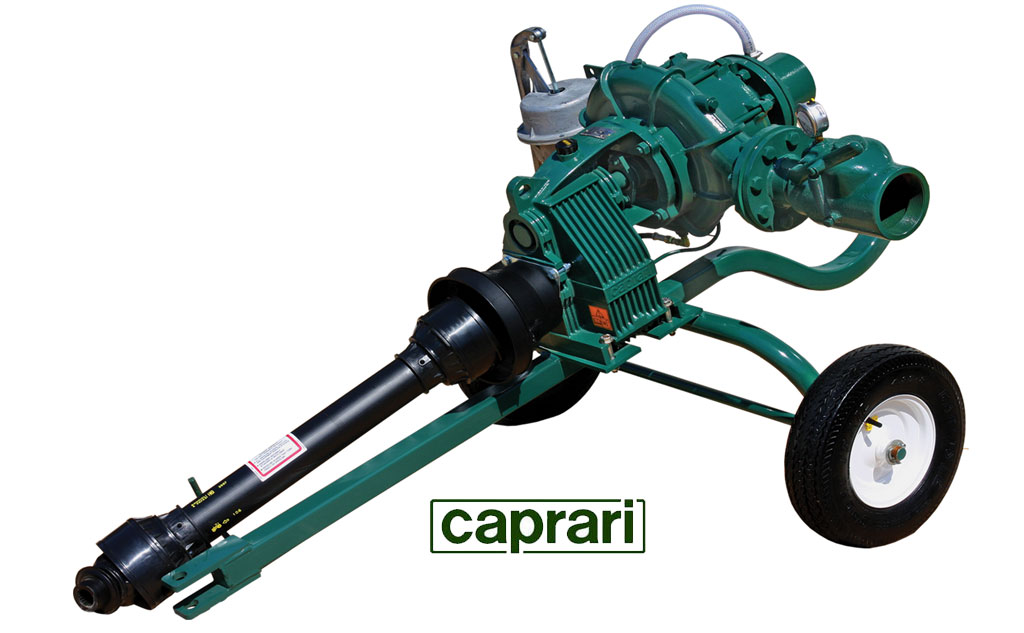

Berkeley Multiple Tractor Driven Stage
Pump TypeFlow / RangeCurvePhoto
Close-coupled Drive Series4500 GPM
Performance Range for Multi Stage Models
Close-Coupled Drive Series
Pump TypeFlow / RangeCurvePhoto
Frame Mount Centrifugal 400-1500 GPM
Performance Range for Multiple Stage Models
Berkeley Centrifugal Series
Pump TypeFlow / RangeCurvePhoto
High Flow / High Efficiency Centrifugal Irrigation Pumps7500 GPM
Performance Range for Multiple Stage Models
Berkeley Centrifugal Series
Pump TypeFlow / RangeCurvePhoto

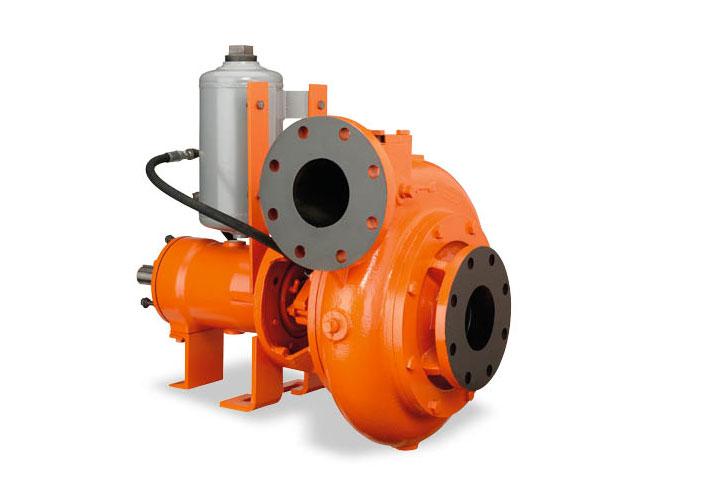

Heavy Duty “Z” Frame5300 GPM
Performance Range for Single Stage Models
Caprari Single Stage Frame Mount
Pump TypeFlow / RangeCurvePhoto
Vertical Multi-Stage (BVM) Series1 – 210 GPM
Vertical Multi-Stage (BVM) Series
Vertical Multi-Stage (BVM) Series

Cadman Hand and Power Primers

Prime Your Pump

Cadman can fit your new pump with the primer of your choice.

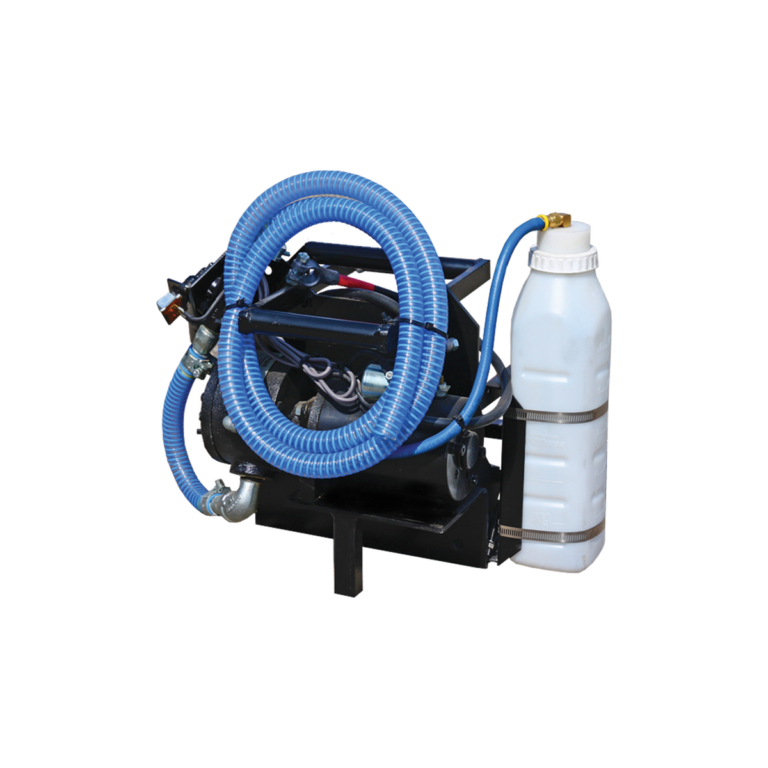

We have a complete line of hand primers and for maximum efficiency, Cadman offers its 12 volt Power Primer.

With the Cadman Power Primer, you can prime your pump in seconds with minimal effort!

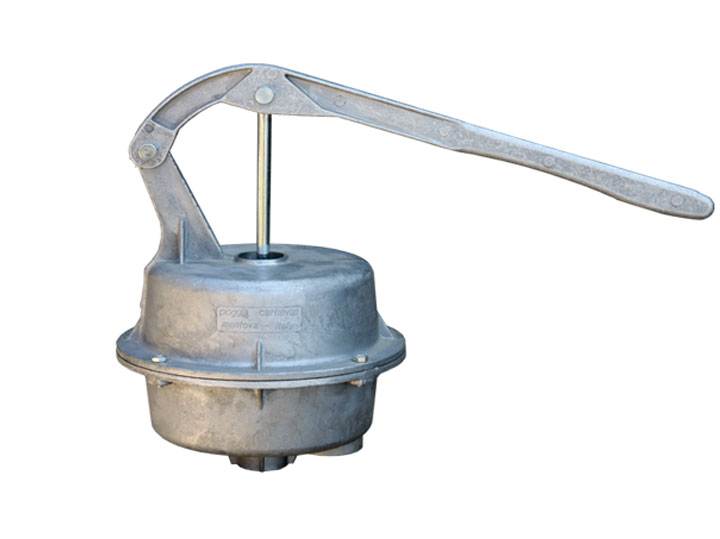

Hand Primer
cadman-power-primer
Power Primer

Power Your Pump

Cadman offers a full range of diesel and gasoline engines to suit your needs. Brands include John Deere, Kubota, Briggs and Stratton, Deutz, and FTP.
