A pump to suit any situation

Cadman Power Units and Pump Sets

Since 1952, Cadman has offered high quality pump sets for the agricultural sector. The modular design of our engine packages makes custom design to meet your needs an easy task. Cadman offers diesel engines from John Deere, Kubota, Caterpillar, FPT and Deutz while gasoline options include Honda and Briggs & Stratton.

Our expertise in design and matching the right pump with the right engine makes sure you get the most efficient system available.

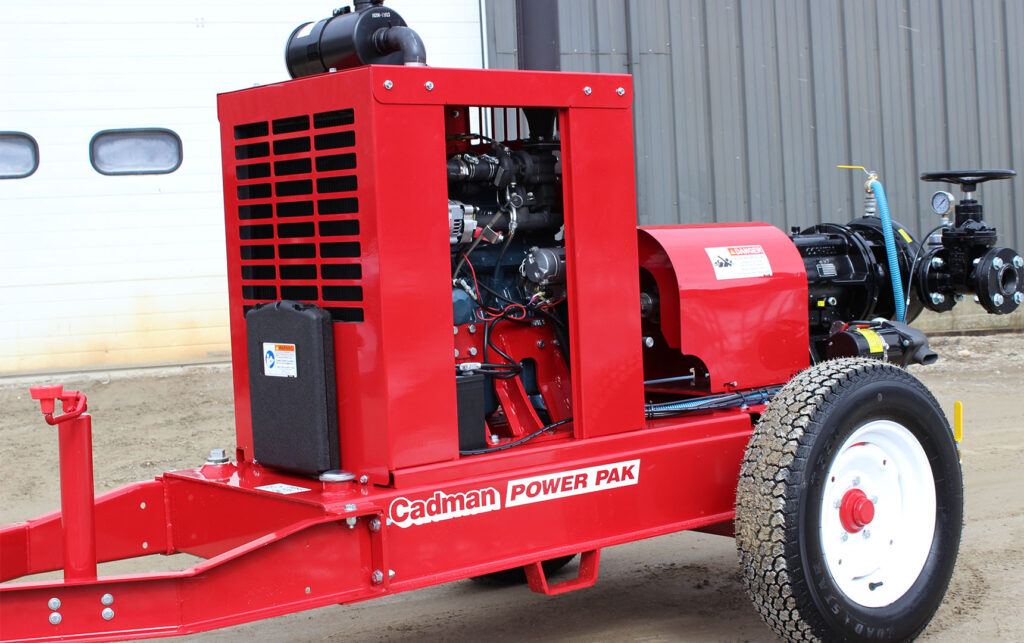

Cadman Irrigation Power Units

kubota-pump-set-cadman

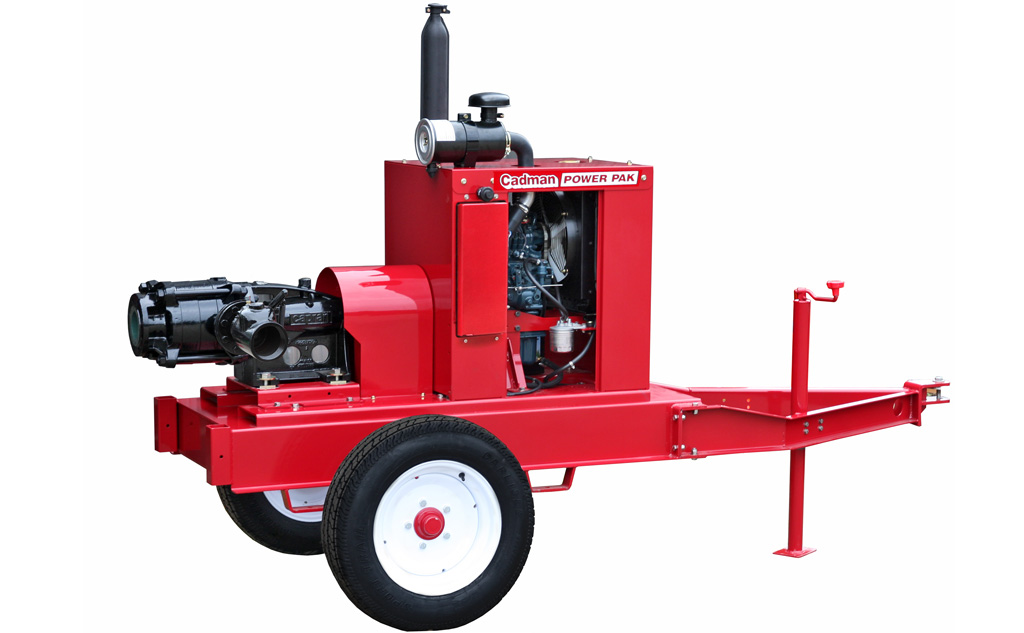

Kubota Pump Set

Cadman offers a full line of Kubota engines that can be matched to the appropriate pump for your application. All pump sets are available with customizable trailers, pump and storage options which are designed to get the maximum efficiency and safety in the field.

  • Skid Base
  • Radiator
  • Heavy Duty Air Cleaner
  • Muffler
  • Hood
  • 50 Gallon Fuel Tank
  • Fuel Level Gauge
  • Instrument Panel w/ Murphy Gauges*
  • Locking Panel Cover
  • Throttle Control
  • Battery Box & Hold Downs
  • Battery Cables
  • Enclosed power unit
  • Muffler
  • Battery
  • Oil level safety gauge
  • Tongue & Axle with 50 gallon fuel tank
  • 12-Volt power primer
Caprari
Part NumberGPM RangePSI RangeEngine hpFuel Consumption
KU-PKG – 16HMNU401348 – 17640 – 17616 @ 3600 RPM0.34 – 1.03 GPH
KU-PKG -16A240A40 – 30013 – 10816 @ 3600 RPM0.34 – 1.03 GPH
KU-PKG – 25HMU402348 – 16040 – 21425 @ 3600 RPM0.56 – 1.51 GPH
KU-PKG – 25A350A50 – 32022 – 13025 @ 3600 RPM0.56 – 1.51 GPH
KU-PKG – 29HMU501355 – 21140 – 19629 @ 3600 RPM0.67 – 1.26 GPH
KU-PKG – 25A350A60 – 45017 – 9529 @ 3600 RPM0.67 – 1.26 GPH
KU-PKG – 25A350A60 – 39650 – 18745 @ 3600 RPM1.12 – 2.6 GPH
KU-PKG – 25A350A150 – 80017 – 9545 @ 3600 RPM1.12 – 2.6 GPH
john-deere-power-unit

John Deere Pump Set

Cadman offers a full line of John Deere engines that can be matched to the appropriate pump for your application. All pump sets are available with customizable trailers, pump and storage options which are designed to get the maximum efficiency and safety in the field.

  • Front Grill/Rad Support
  • Back Panel/Rear Hood Support
  • Instrument Panel w/ Murphy Gauges
  • Locking Panel Cover
  • Throttle Control
  • Battery Box & Hold Downs
  • Battery Cables
  • Skid Base
  • Radiator
  • Heavy Duty Air Cleaner
  • Safety Element (Air Cleaner)
  • Service Indicator (Air Cleaner)
  • Straight Stack Exhaust
  • Hood

Instrument panel includes tachometer/hourmeter, oil pressure gauge, water temperature, gauge, voltmeter, Murphy tattletale, & key switch.

  • 3/4 Enclosed power unit
  • Muffler
  • Oil level safety gauge
  • Coolant level safety gauge
  • Tongue & Axle with appropriate sized fuel tank
  • 12-Volt power primer
DESCRIPTION
Side Panels (For Fully Enclosed 4 Cylinder)
Side Panels (For Fully Enclosed 6 Cylinder)
Tongue & Axle Assembly
Tongue & Axle Assembly w/ 100 Gallon Fuel Tank
Tongue & Axle Assembly w/ 150 Gallon Fuel Tank
Third Support Leg (avail. w/ axle kit only)
100 Gallon Fuel Tanks w/o Tongue & Axle
150 Gallon Fuel Tanks w/o Tongue & Axle
Tandem Axle
12 Hour Shutdown Clock
24 Hour Shutdown Clock
Generator Mount (includes belts & pulleys)
0-200 PSI High/Low Pressure Gauge
L-129 Oil Level Safety Gauge (4045)
L-129 Oil Level Safety Gauge (6068)
EL150K1 Coolant Level Safety Gauge
Muffler (80 – 200)
Muffler (225 – 275)
Exhaust Silencer
Battery (Standard Duty for 4045)
Battery (Heavy Duty for 6068)

NOTE: Continuous HP ratings are published ratings by John Deere. These ratings do not account for fan or alternator losses.

Caprari
Part NumberGPM RangePSI RangeEngine hpFuel Consumption
JD-PKG – 66MR6532A100 – 40040 – 19566 @ 800 RPM0.5 – 3.6 GPH
JD-PKG – 75BHR200A500 – 230010 – 3764 @ 1800 RPM1.2 – 2.7 GPH
JD-PKG – 82MG802C250 – 75065 – 17579 @ 2200 RPM0.9 – 4.5 GPH
JD-PKG – 99BHR250A1000 – 440010 – 3090 @ 1800 RPM1.7 – 3.3 GPH
JD-PKG – 99MG802A250 – 75070 – 18499 @ 2200 RPM1.1 – 4.6 GPH
JD-PKG – 125MG8043A200 – 75087 – 238120 @ 2000 RPM1.4 – 5.3 GPH
JD-PKG – 185MG10022C400 – 100095 – 195170 @ 1800 RPM2.5 – 6.5 GPH
JD-PKG – 200MG10022C400 – 1100150 – 225200 @ 2000 RPM3 – 9 GPH
JD-PKG – 225MR1252C*800 – 160090 – 175220 @ 1800 RPM3.2 – 8.3 GPH
JD-PKG – 325PM1503A*900 – 240090 – 175293 @ 1800 RPM4 – 14 GPH
Cornell
Part NumberGPM RangePSI RangeEngine hpFuel Consumption
JD-PKG – 1554414T400 – 130050 – 170155 @ 2300 RPM2.1 – 7.6 GPH
JD-PKG – 1854HM400 – 120045 – 170185 @ 2300 RPM2.5 – 8.8 GPH
Berkeley
Part NumberGPM RangePSI RangeEngine hpFuel Consumption
JD-PKG – 115B3JQBM200 – 110045 – 156115 @ 2400 RPM1.8 – 5.7 GPH
JD-PKG – 140B4JQBH400 – 150045 – 162140 @ 2400 RPM1.8 – 6.9 GPH
JD-PKG – 200B4EYQBH400 – 1400200 – 2100200 @ 2400 RPM3 – 9 GPH
JD-PKG – 225B5EXQBHS*800 – 1700225 -2300225 @ 2300 RPM3.2 – 12.1 GPH

*Max RPM is determined by the maximum allowable RPM for the pump. For detailed HP information, refer to the engine power curve.

honda-powerunit-pump-set

Briggs & Stratton Pump Set

Cadman offers a full line of Briggs and Stratton engines that can be matched to the appropriate pump for your application. All pump sets are available with customizable trailers, pump and storage options which are designed to get the maximum efficiency and safety in the field.

Features

  • Skid Base
  • Radiator
  • Heavy Duty Air Cleaner
  • Muffler
  • Hood
  • 50 Gallon Fuel Tank
  • Fuel Level Gauge
  • Instrument Panel w/ Murphy Gauges*
  • Locking Panel Cover
  • Throttle Control
  • Battery Box & Hold Downs
  • Battery Cables

    Deutz Pump Set

    Cadman offers a full line of Duetz engines that can be matched to the appropriate pump for your application. All pump sets are available with customizable trailers, pump and storage options which are designed to get the maximum efficiency and safety in the field.

    FEATURES

    • Skid Base
    • Radiator
    • Heavy Duty Air Cleaner
    • Muffler
    • Hood
    • 50 Gallon Fuel Tank
    • Fuel Level Gauge
    • Instrument Panel w/ Murphy Gauges*
    • Locking Panel Cover
    • Throttle Control
    • Battery Box & Hold Downs
    • Battery Cables
    john-deere-power-unit-pump-set

    John Deere Power Unit

    • Front Grill/Rad Support
    • Variable pitch fan – 140°F
    • Back Panel/Rear Hood Support
    • Instrument Panel w/ Murphy Gauges
    • Locking Panel Cover
    • Throttle Control
    • Battery Box & Hold Downs
    • Battery Cables
    • Skid Base
    • Radiator
    • Heavy Duty Air Cleaner
    • Safety Element (Air Cleaner)
    • Service Indicator (Air Cleaner)
    • Straight Stack Exhaust
    • Hood

    Instrument panel includes tachometer/hourmeter, oil pressure gauge, water temperature, gauge, voltmeter, Murphy tattletale, & key switch.

    • 3/4 Enclosed power unit
    • Muffler
    • Oil level safety gauge
    • Coolant level safety gauge
    • Tongue & Axle with appropriate sized fuel tank
    • 12-Volt power primer
    DESCRIPTION
    Side Panels (For Fully Enclosed 4 Cylinder)
    Side Panels (For Fully Enclosed 6 Cylinder)
    Tongue & Axle Assembly
    Tongue & Axle Assembly w/ 100 Gallon Fuel Tank
    Tongue & Axle Assembly w/ 150 Gallon Fuel Tank
    Third Support Leg (avail. w/ axle kit only)
    100 Gallon Fuel Tanks w/o Tongue & Axle
    150 Gallon Fuel Tanks w/o Tongue & Axle
    Tandem Axle
    12 Hour Shutdown Clock
    24 Hour Shutdown Clock
    Generator Mount (includes belts & pulleys)
    0-200 PSI High/Low Pressure Gauge
    L-129 Oil Level Safety Gauge (4045)
    L-129 Oil Level Safety Gauge (6068)
    EL150K1 Coolant Level Safety Gauge
    Muffler (80 – 200)
    Muffler (225 – 275)
    Exhaust Silencer
    Battery (Standard Duty for 4045)
    Battery (Heavy Duty for 6068)


    NOTE: Continuous HP ratings are published ratings by John Deere. These ratings do not account for fan or alternator losses.

    Model (hp)Part Number
    49 hpJD-ASY-4024T-49PP
    66 hpJD-ASY-4024T-66PP
    75 hpJD-ASY-5030T-75PP
    76 hpJD-ASY-5030H3T-76PP
    82 hpJD-ASY-5030H3T-82PP
    99 hpJD-ASY-4045H3-99PP
    80 hpJD-ASY-4045H3T-80PP
    82 hpJD-ASY-5030H3T-82PP
    84 hpJD-ASY-5030T-84PP
    99 hpJD-ASY-4045H3-99PP
    115 hpD-ASY-4045T-115PP
    125 hpD-ASY-4045H3-125PP
    140 hpD-ASY-4045H3-140PP
    155 hpJD-ASY-6068H3-155PP
    173 hpJD-ASY-6068H3-173PP
    185 hpJD-ASY-6068T-168PP
    200 hpJD-ASY-6068H3-200PP
    225 hpJD-ASY-6081A-225PP
    275 hpJD-ASY-6081A-275PP
    300 hpJD-ASY-6090H3-300PP
    325 hpJD-ASY-6090H3-325PP
    375 hpJD-ASY-6090H3-375PP-F
    450 hpJD-ASY-6135H3-450PP
    450 hp w/ aux driveJD-ASY-6135H3-450PPA
    600 hpJD-ASY-6135H3-600PP
    600 hp w/ aux driveJD-ASY-6135H3-600PPA

    POWERTECH® engines from John Deere bring a new level of technology to the engine market. Engineering advancement in all new POWERTECH® engines, along with electronic controls on the larger models, have enabled John Deere to provide a unique combination of performance and environmental compliance. POWERTECH® engines give you more than 30 power choices. They are packed with features and benefits that you can’t find in any other engine brand. With John Deere, you get more power, higher torque, better fuel efficiency, smooth operation, enhanced reliability, and application flexibility.

    Engine warranty on every John Deere engine is as follows:

    Step 1: Full coverage on all products with unlimited hours during the first year of operation.

    Step 2: Full coverage on all products is extended for the second year, up to 2,000 hours of operation. Total hours are cumulative from the time the engine goes into service.

    kubota-6hp-power-unit-pump-set

    Kubota Power Unit

    • Radiator
    • Heavy Duty Air Cleaner
    • Muffler
    • Hood
    • 50 Gallon Fuel Tank
    • Fuel Level Gauge
    • Instrument Panel w/ Murphy Gauges*
    • Locking Panel Cover
    • Throttle Control
    • Battery Box & Hold Downs
    • Battery Cables
    • 3/4 Enclosed power unit
    • Skid Base
    • Muffler
    • Oil level safety gauge
    • Coolant level safety gauge
    • Tongue & Axle with appropriate sized fuel tank
    • 12-Volt power primer
    DESCRIPTION
    Side Panels (Z602, D902, D1305)
    Side Panels (V1505T)
    Tongue & Axle Assembly
    Lifting Bail
    12 Hour Shutdown Clock
    24 Hour Shutdown Clock
    0-200 PSI High/Low Pressure Gauge
    L-129 Oil Level Safety Gauge
    EL150K1 Coolant Level Safety Gauge
    Battery
    Model (hp)Part Number
    6 hp
    14 hpKU-ASY-Z602-14PP
    21 hpKU-ASY-D902-21PP
    29 hpKU-ASY-D1305-29PP
    45 hpKU-ASY-V1505T-45PP
    66 hpKU-ASY-V3600-66PP

    Fiat (FPT) Pump Set

    Cadman offers a full line of Fiat (FPT) engines that can be matched to the appropriate pump for your application. All pump sets are available with customizable trailers, pump and storage options which are designed to get the maximum efficiency and safety in the field.

    Features

    • Skid Base
    • Radiator
    • Heavy Duty Air Cleaner
    • Muffler
    • Hood
    • 50 Gallon Fuel Tank
    • Fuel Level Gauge
    • Instrument Panel w/ Murphy Gauges*
    • Locking Panel Cover
    • Throttle Control
    • Battery Box & Hold Downs
    • Battery Cables
